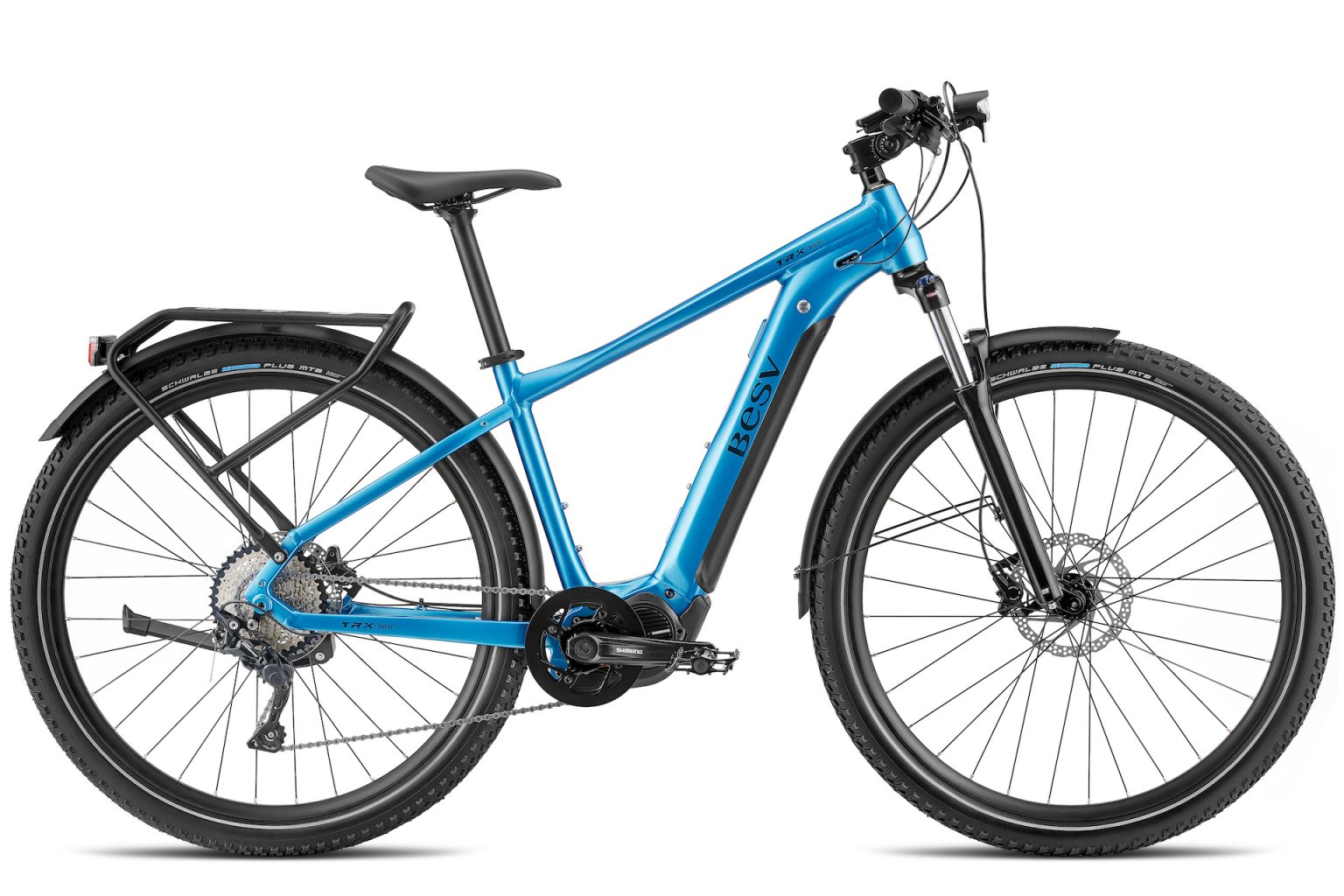

TRX URBAN

Description

SIZES S (40cm), M (42.5cm), L (46cm)
COLOR Matte blue with gloss black decals
FRAME Hardtail BESV premium alloy frame with down tube for integrated Darfon battery, Shimano center-motor with protection cover, tapered 1 1/8″ – 1.5″ head tube, post disc mount, cold-forged dropout and replaceable hanger
DRIVE UNIT Shimano EP-800 center-motor, 250W rated power, 85Nm of torque, 25km/h maximum assist
BATTERY Darfon integrated battery, 504Wh with 2A charger
DISPLAY Shimano SC-E6100 center mounted LCD display
FORK Suntour XCM32, Coil damping, crown lockout, tapered alloy steerer, travel 100mm
CRANKSET FSA, 36T chainring
BOTTOM BRACKET Shimano, integrated in motor
PEDALS Marwi SP-102, alloy body, ball bearings
REAR DERAILLEUR Shimano Deore 10 speed
SHIFTERS Shimano Deore 10 speed
CASSETTE Shimano Deore 10 speed, 11-42T
CHAIN KMC e10 EPT
WHEELSET Shimano MT400 front and rear hub, Boost hubs spacing, for Center Lock disc brakes, straight stainless steel spokes, 29″ multichamber alloy rims for disc brakes with 32H
TIRES Schwalbe Marathon Plus, 29″x 2.25″
BRAKESET Shimano MT201, 2-piston hydraulic disc, with 180mm front and rear rotors
BRAKE LEVERS Shimano MT201, 3 finger lever
HEADSET FSA, 1 1/8″ – 1.5″ headset, ACB bearings
HANDLEBAR MTB riser bar, 6061 alloy, double-butted, width: 720mm, 31.8mm clamp
STEM Trekking alloy, adjustable, length: 98mm, 31.8mm clamp
GRIPS MTB gel grips with padding and BESV clamp
SADDLE Velo VL-6470
SEATPOST Alloy micro-adjust, 31.6mm diameter, 0mm offset
FENDERS Alloy extruded fenders, front & rear 3/4 length, stainless steel hardware
HEADLIGHT Herrmans MR4 E-Bike, 120 Lumens, 6-12V, with reflector, stem mounted
TAILLIGHT S-Sun eBike Light
REAR CARRIER Integrated with fender, tubular aluminium carrier, with platform and rear light mount
ACCESSORIES Adjustable kickstand
