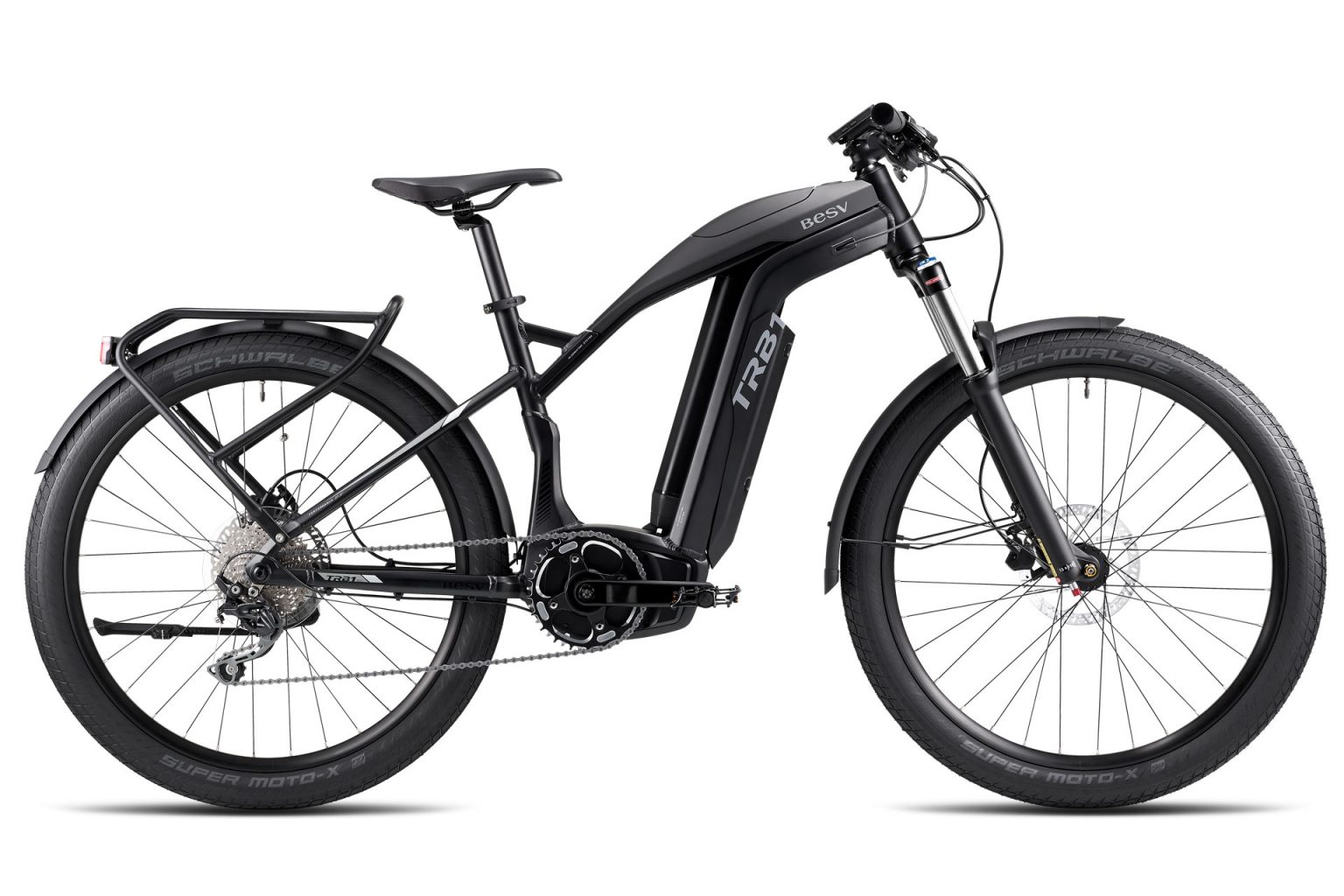

TRB1 URBAN

Description

SIZES M (44cm), L (49cm)
COLOR Matt Black
FRAME Hardtail BESV premium alloy frame with dual tube solution, down tube for integrated Darfon battery, Brose Drive S center-motor with protection cover, tapered 1 1/8″ – 1.5″ head tube, post disc mount, cold-forged dropout and replaceable hanger
DRIVE UNIT Brose Drive S center-motor, 250W rated power, 90Nm of torque, 25km/h maximum assist
BATTERY Darfon integrated battery, 756Wh with 4A charger
DISPLAY Brose HMI with BESV Sport application
FORK Suntour XCM34, Coil damping, crown lockout, tapered alloy steerer, travel 100mm
CRANKSET BESV crank for Brose, 42T chainring
BOTTOM BRACKET Brose, integrated in motor
PEDALS Marwi SP-102 with reflectors
REAR DERAILLEUR Shimano Deore 10 speed
SHIFTERS Shimano Deore 10 speed
CASSETTE Shimano Deore 10 speed, 11-36T
CHAIN KMC e10 EPT
WHEELSET MTB front and rear hub, for 6-bolt disc brakes, streight stainless steel spokes, 27.5″ multichamber alloy rims for disc brakes with 32H
TIRES Schwalbe Super Moto-X, 27.5″ x 2.4″, Green Guard, Reflective stripe
BRAKESET Tektro HD-M275, 2-piston front and rear hydraulic disc, with 180mm front and rear rotors
BRAKE LEVERS Tektro HD-M275, 2 finger lever
HEADSET FSA, 1 1/8″ – 1.5″ headset, ACB bearings
HANDLEBAR MTB reis bar, 6061 alloy, double-butted, width: 720mm, 31.8mm clamp
STEM MTB alloy, 31.8mm clamp
GRIPS MTB gel grips with padding and BESV clamp
SADDLE Selle Royal
SEATPOST Alloy micro-adjust, 31.6mm diameter, 17mm offset
FENDERS Alloy extruded fenders, front & rear 3/4 length, stainless steel hardware
HEADLIGHT Romix X4EP E-Bike, 50 lux with wide beam light stream, 6-90V, with reflector, stem mounted
TAILLIGHT S-Sun eBike Light
REAR CARRIER Integrated with fender, tubular aluminium carrier, with platform and rear light mount
ACCESSORIES Adjustable kickstand
